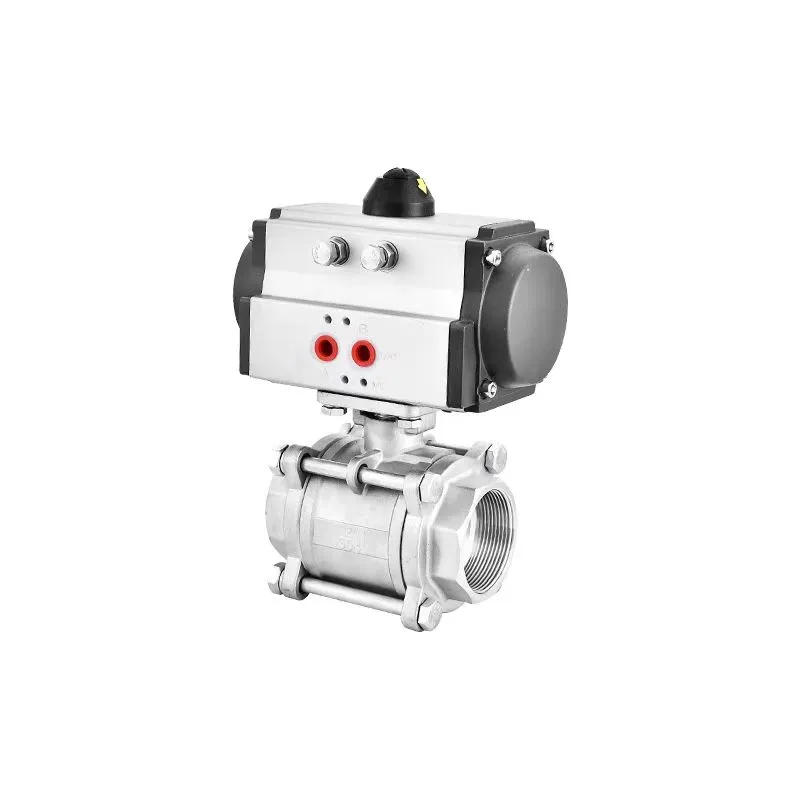

Pneumatic Bakin Karfe Threaded Ball Boy

A cikin filin sarrafa kansa da sarrafa ruwa, pnneumat baƙon karfe wanda Shengshi Huagong ya zama kyakkyawan yanayin aiki da kuma ingantaccen iko na juriya da ingantacciyar iko. Wannan bawul din ya haɗu da tsarin maganin ƙwaƙwalwa tare da bakin karfe mai ɗaukar hoto na kayan ƙarfe, amma kuma ya fahimci ma'anar atomatik, haɓaka ƙarfi da aminci da amincin sarrafa ruwa.

Aika tambaya

Bayanin Samfura

Wannan pneumatic bakon karfe boy b boyve ne yafi haɗa shi daga jikin boyen karfe, ball, bawule kara, zobe, zobe da na'ura masu amfani da cuta. Boyve jikin, ball da bawule cawve an yi shi ne da karfe 304 ko 316 bakin karfe, kuma suna da tsari da tsari don tabbatar da ƙarfi da juriya da juriya da juriya da juriya da juriya da juriya da juriya. An yi zobe na hatimin kamar kayan ingancin da aka yi kamar polytetraflafluorethylene (PTFE) da kuma roba nitrile (Nbr) don cimma kyakkyawan gado; Likita na etumatic ya ƙunshi silinda, piston, bazara, lokacin sarrafawa, da sauransu, kuma ana tura shi ta hanyar da aka matse shi don haɓaka bawul ɗin.

A lokacin da iska ke shiga silinda na likitan fata, Piston yana haifar da ciyayya a ƙarƙashin aikin matsin iska, yana tura bawul don ƙara ƙwanƙwasa, sannan kuma tuki ƙwallan don juyawa. Lokacin da iska ta matsa ta tura piston don juya kwallon 90 °, bawul ɗin yana buɗewa da kuma matsakaici na wucewa. Lokacin da aka canza hanyar iska mai cike da tayar da iska, sai piston yana fitar da bawul na bawul don jujjuya 90 ° a cikin matsanancin sake saiti, da bashin jirgin sama yana rufe ya yanke kwararar matsakaici. Bugu da kari, ta hanyar sarrafa kayan aiki kamar su bawuloli na sodoloid da mukunan za a iya sarrafawa, za a iya daidaita yawan kwarara, kuma ana iya haɗa shi da amfani da tsarin sarrafawa.

Sigogi na fasaha

Sashe na sigogi	Takamaiman sigogi
Tsarin Samfura	Q611F-16P, Q611F-25P, Q611F-40P, da sauransu (rarrabe gwargwadon matakin matsin lamba)
Nominal diamita	DN15, DN20, DN25, DN32, DN30, DN65, DN65, DN125, DN1250, DN150
Matsakaita matsi	1.6Pta, 2.5psa, 4.0mpa
Zazzabi mai amfani	-20 ℃ ~ 232 ℃ (ana iya daidaita don yanayin aiki na musamman)
Valve jikin mutum	304 Bakin karfe, 316 Bakin Karfe, 316l Bakin Karfe
Kallon ball	304 Bakin karfe, 316 Bakin Karfe, 316l Bakin Karfe
Kara kayan	304 Bakin karfe, 316 Bakin Karfe, 316l Bakin Karfe
Alofin hatimi	PTFE (Polytetraflafluorethylene), ppl (par-polylene), NBR (Nitrile roba)
Hanyar haɗin kai	Haɗin Haɗin, daidai da GB / T 7306.1-2000, GB / T 730.2-2000 Matsayi
Yanayin tuƙi	Pnneumatic (aiki mai lamba guda ɗaya, siliki mai hawa biyu)
Air Sours	0.4 ~ 0.7psa
Mai watsa labarai da aka zartar	Ruwa, mai, gas, acidic da alkaline ruwa, da sauransu (dacewa kamar yadda hatimin kayan da kayan bawaka)
Yanayin aiki	Manual (Gaggawa Idan Keɓaɓɓiyar Rashin Silinda), Ikon Motoci
Leakage matakin	ANSI B16.104 Class VI (Zero kawai)
Actuator ke dubawa	Iso 5211 daidaitacce
Maganin anti-cankrosion	Jiyya na passishing da kuma passivation magani, nickel farantin da chrome pering za a iya yi a kan bukatun musamman
Rayuwar Ma'aikata	Bude da rufe lokutan a karkashin yanayin aiki na al'ada ≥ 500,000

Yanayin aikace-aikace

(I) filin masana'antu

A cikin masana'antar sinadarai, ana amfani dashi don ikon jigilar kaya na kayan masarufi da samfuran acid, ƙwayoyin cuta na alkalic, da sauransu.; A cikin masana'antar mai da gas, ana amfani dashi don daidaitawa da saurin yanke da sufuri da rarraba mai mai da gas na halitta; A cikin abinci, abin sha da masana'antu na pharmaceuticly, dole ne a siyar da ƙimar hygiene wanda ke haɗuwa da ƙa'idodin tsabta na kayan aiki, cikawar samfurin da sauran hanyoyin samar da su don tabbatar da amincin.

(Ii) makamashi da filayen kariya na muhalli

A cikin tsarin dumama, ana amfani da kwarara mai gudana ta hanyar sarrafawa ta atomatik; A cikin ƙwayar ƙwayar kankara, ana amfani dashi don sarrafa jigilar kayayyaki da ɗigowar shara da ɓarke don magance ƙazantar tsalle-tsalle; A cikin sabon filin makamashi, kamar Photovoltaic, Makamashin Hydrogen da sauran matakan samarwa, ana sarrafa kafofin watsa labarai iri-iri don tabbatar da ingantaccen aikin aiwatar da aikin samarwa.

Pneumatic Stainless Steel Threaded Ball Valve
